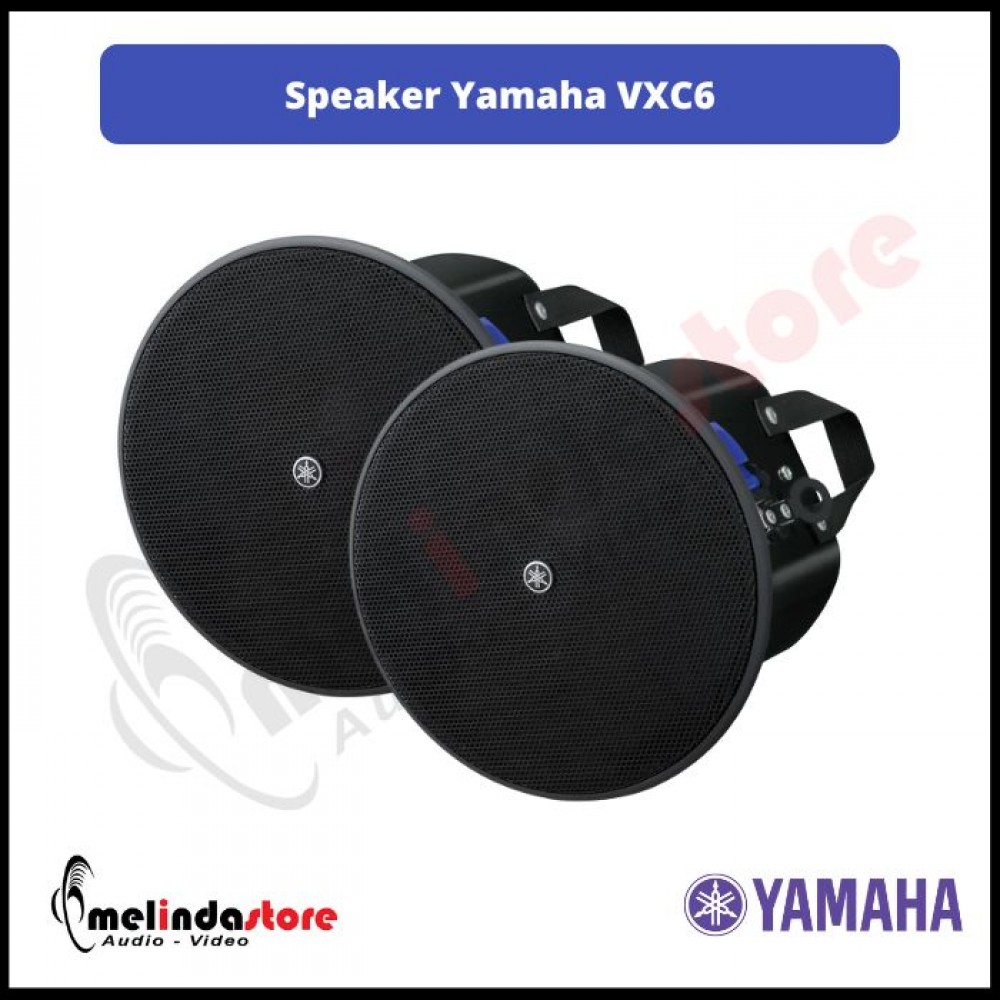

The Yamaha VXC6 is a 2-way in-ceiling loudspeaker designed for commercial installations. It's part of Yamaha's VXC series, known for providing clear sound for music and announcements.

Key Features and Specifications

• Speaker Type: 2-way, Acoustic Suspension

• Drivers:

  • LF (Low-Frequency): 6.5" cone woofer

  • HF (High-Frequency): 0.75" soft dome tweeter

• Power Handling:

  • NOISE: 75W

  • PGM (Program): 150W

  • PEAK: 300W

• Nominal Impedance: 8Ω

• Frequency Range (-10dB): 56Hz - 20kHz

• Nominal Coverage: 110° conical

• SPL (Sound Pressure Level):

  • Sensitivity (1W, 1m on axis): 86dB

  • Peak (Calculated): 111dB

• Transformer Taps: The VXC6 features an internal transformer that allows for both high-impedance (70V/100V line) and low-impedance (8Ω) operation, which can be selected via a switch on the baffle.

  • 100V Taps: 60W, 30W, 15W

  • 70V Taps: 60W, 30W, 15W, 7.5W

• Connectors: 1 x Euroblock (4-pin) for input and loop-thru

• Installation:

  • Cutout Size: Ø247 mm (Ø9 3/4")

  • Required Ceiling Board Thickness: 5 mm - 35 mm

  • Includes "Anti-Drop Tab" to hold the speaker temporarily in place during installation.

  • Comes with O-ring and tile rails for safe and smooth installation.

• Dimensions:

  • Diameter: 286 mm (11.3")

  • Depth: 205 mm (8.1")

• Weight: 4.4 kg (9.7 lbs)

Installation and Use

The VXC6 is designed for quick and safe installation. The "Anti-Drop Tab" is a particularly helpful feature that frees up the installer's hands for wiring. The speaker is sold in pairs and is suitable for various commercial applications like restaurants, retail stores, and offices where high-quality background music and clear announcements are needed.

Harga tertera untuk : 1 Pair
