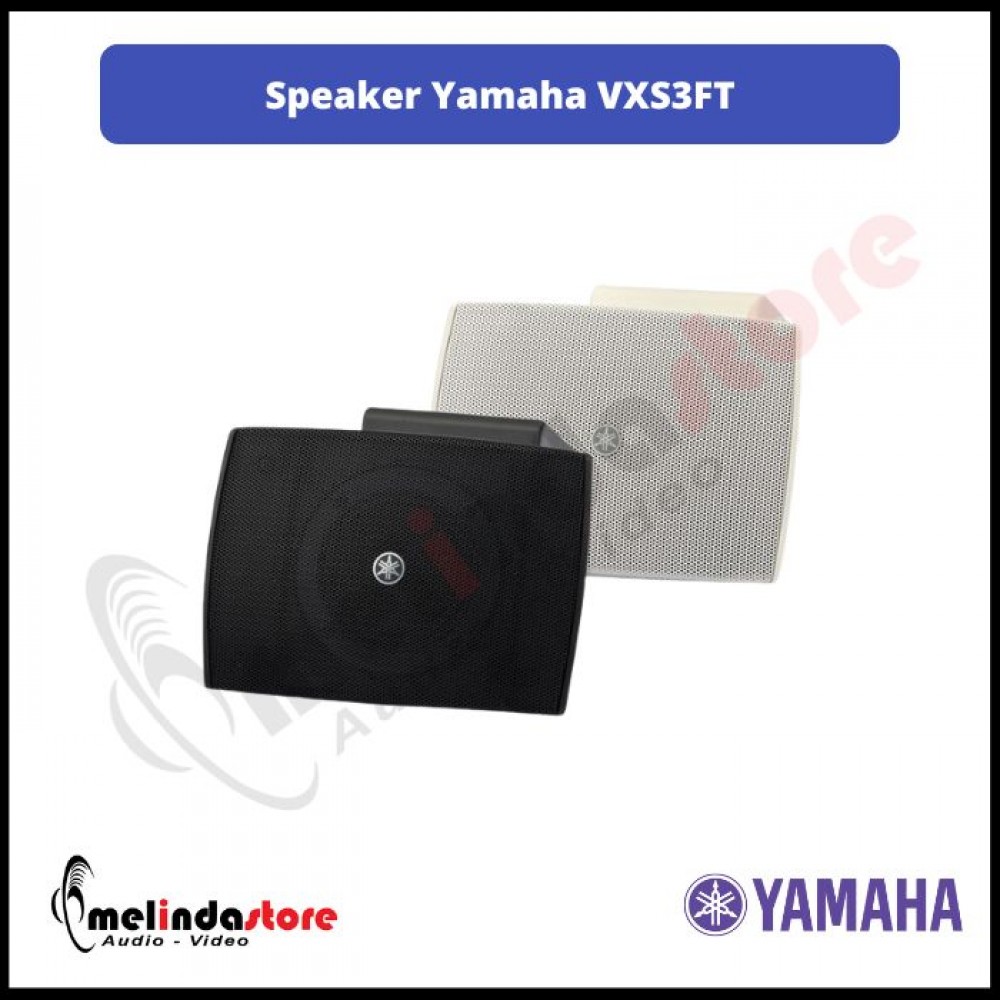

The Yamaha VXS3FT is a compact, high-impedance surface-mount speaker designed for commercial and professional installations.  It is part of Yamaha's VXS Series "F model" speakers, which are known for their elegant, discreet design and high-quality sound.

Key Features and Specifications

• Design: The VXS3FT has a sleek, minimalist design that is intended to blend seamlessly with various interior décors. The enclosure and grille can be painted to match the surrounding environment. It comes in black and white models.

• Acoustic Performance:

  • Speaker Type: Full-range, acoustic suspension.

  • Components: 3.5-inch cone.

  • Frequency Range: 130 Hz - 20 kHz (-10dB).

  • Nominal Coverage: 150° (horizontal) x 160° (vertical).

  • Sensitivity: 86 dB SPL (1W, 1m on axis).

• Power and Impedance:

  • The "T" in the model name indicates that this is a high-impedance model, making it suitable for larger installations where a large number of speakers are needed to cover an expansive area.

  • Transformer Taps: It has a built-in transformer with selectable taps for 70V and 100V lines.

    • 100V: 15W, 7.5W, 3.8W

    • 70V: 15W, 7.5W, 3.8W, 1.9W

  • Power Rating: 20W (Noise), 40W (Program), 80W (Peak).

• Installation:

  • It is a surface-mount speaker designed for wall or ceiling installation.

  • It comes with a dedicated bracket that includes the transformer, simplifying the installation process.

• Dimensions and Weight (with bracket):

  • Width: 184 mm (7.3 in)

  • Height: 178 mm (7.0 in)

  • Depth: 139 mm (5.5 in)

  • Weight: 1.7 kg (3.7 lbs)

Usage

The Yamaha VXS3FT is commonly used in commercial settings such as:

• Retail stores

• Restaurants and cafes

• Hotels and lobbies

• Corporate offices

Its high-impedance design and selectable power taps allow for flexible system design, enabling a large number of speakers to be powered by a single amplifier over long cable runs. The speaker is tuned to provide a rich and expressive sound, even at low volumes, making it ideal for background music and paging applications

Harga tertea untuk : 1 Pair
