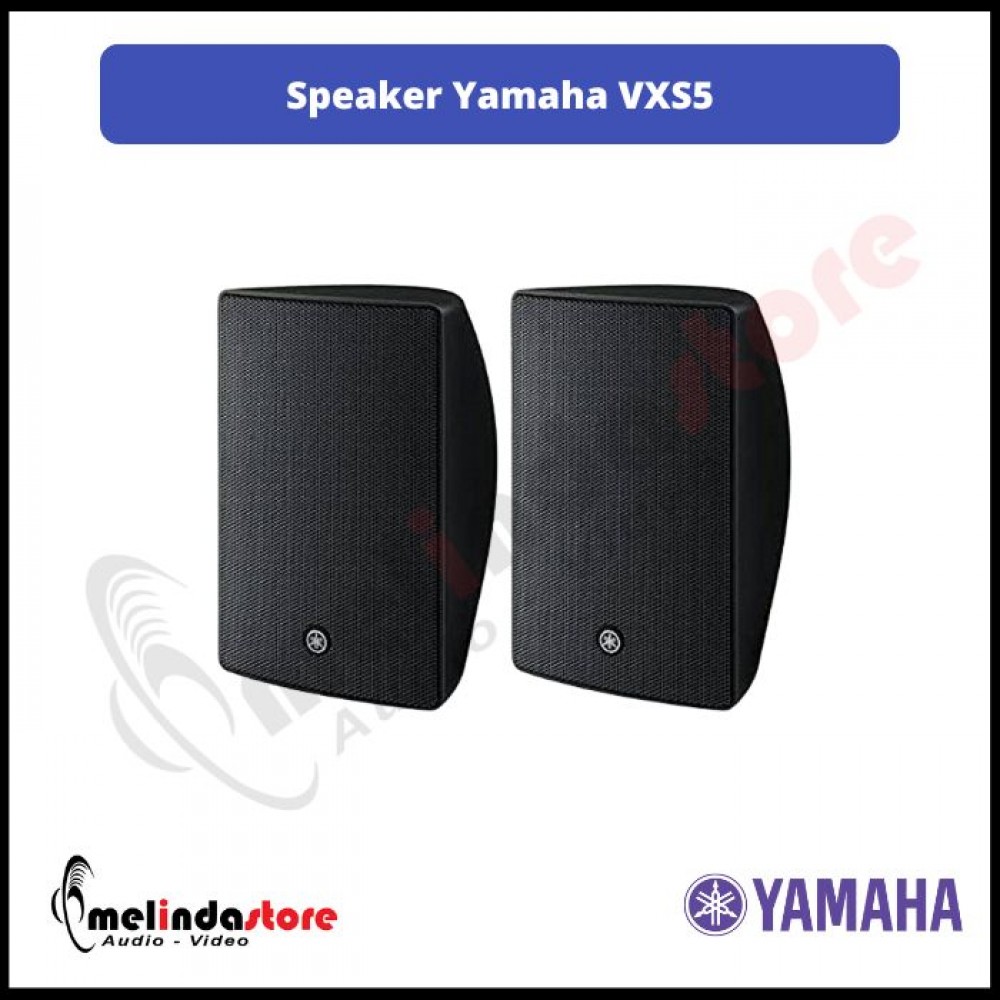

The Yamaha VXS5 is a surface-mount, 2-way bass-reflex speaker designed for commercial installation applications.  It's part of the Yamaha VXS series, which is known for delivering high-quality sound and for its durable, user-friendly design.

Key Features and Specifications

• Speaker Type: 2-way, bass-reflex system.

• Drivers:

  • LF (Low-Frequency): 5.25" cone woofer

  • HF (High-Frequency): 0.75" soft dome tweeter

• Frequency Range (-10dB): 62 Hz – 20 kHz

• Power Rating:

  • Noise: 75W

  • PGM (Program): 150W

  • MAX (Peak): 300W

• Nominal Impedance: 8 ohms

• Transformer Taps: The VXS5 features internal transformers that allow it to be used with both high-impedance (70V/100V) and low-impedance (8Ω) systems.

  • 100V Taps: 30W, 15W, 7.5W

  • 70V Taps: 30W, 15W, 7.5W, 3.8W

• SPL (Sound Pressure Level):

  • Sensitivity (1W, 1m): 89 dB SPL

  • Peak (Calculated): 114 dB SPL

• Coverage Angle: 120° H x 120° V (average, 500Hz-4kHz)

• Durability: The speaker has an IP35-rated waterproof enclosure, making it suitable for both indoor and outdoor use.

• Cabinet: Made from ABS, available in black (VXS5) and white (VXS5W).  The enclosure is paintable to match any interior.

• Connectors: 1x Euroblock (4P) with input and loop-thru terminals for easy wiring.

• Dimensions (W x H x D): 176mm x 280mm x 163mm (6.9" x 11.0" x 6.4")

• Weight: 3.6 kg (7.9 lbs)

• Mounting: Comes with a dedicated bracket for secure and easy wall or ceiling installation.  The bracket allows for pan and tilt adjustment.

Applications

The VXS5 is designed for a variety of commercial spaces, including:

• Restaurants and cafes

• Retail stores and shopping malls

• Meeting spaces and conference rooms

• Home gyms

• Other public address applications

It is sold in pairs and includes all the necessary mounting hardware for installation.

Harga tertera untuk : 1 Pair
