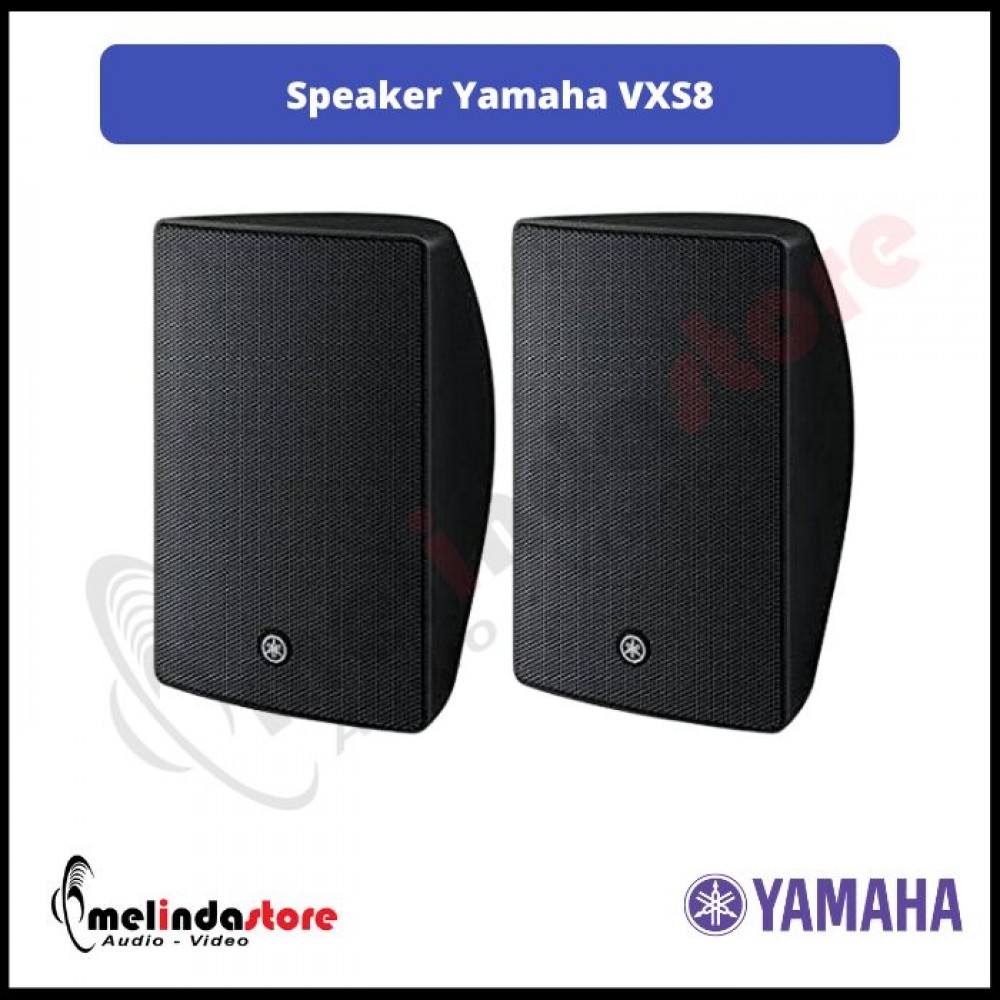

The Yamaha VXS8 is a 2-way, bass-reflex surface-mount speaker designed for commercial installation applications. It's part of Yamaha's VXS Series, which is known for providing clear, high-quality sound for background music and public address systems.

Key Features and Specifications

• Speaker Type: 2-way, bass-reflex

• Components:

  • LF (Low Frequency): 8" cone woofer

  • HF (High Frequency): 1" soft dome tweeter

• Frequency Range: 51 Hz - 20 kHz (-10dB)

• Power Rating:

  • NOISE: 90W

  • PGM (Program): 180W

• Impedance: 8Ω

• Transformer Taps: The VXS8 includes a built-in transformer with selectable taps, allowing it to be used in both low-impedance (8Ω) and high-impedance (70V/100V) distributed audio systems.

  • 100V line: 60W, 30W, 15W

  • 70V line: 60W, 30W, 15W, 7.5W

• Sensitivity: 91 dB SPL (1W, 1m)

• Maximum SPL: 117 dB SPL (Calculated, 1m)

• Coverage Angle (H x V): 100° x 100°

• Connectors: 1x Euroblock (4P) for input and loop-thru.

• Construction: The rectangular cabinet is made of ABS material, and the grille is made of powder-coated aluminum. It is available in black (VXS8) and white (VXS8W).

• Weather Resistance: IP35-rated, which makes it suitable for many outdoor applications, such as covered patios or open-air retail spaces.

• Dimensions (W x H x D): 278mm x 430mm x 239mm (10.9" x 16.9" x 9.4")

• Weight: 8.2 kg (18.1 lbs)

• Included Accessories: Wall/ceiling mount bracket and terminal cover. The included bracket allows for flexible mounting on both walls and ceilings.

The VXS8 is typically sold in pairs and is designed for easy and safe installation. It is a popular choice for various commercial environments such as restaurants, cafes, retail stores, and hotels.

Harga tertera untuk : 1 Pair
