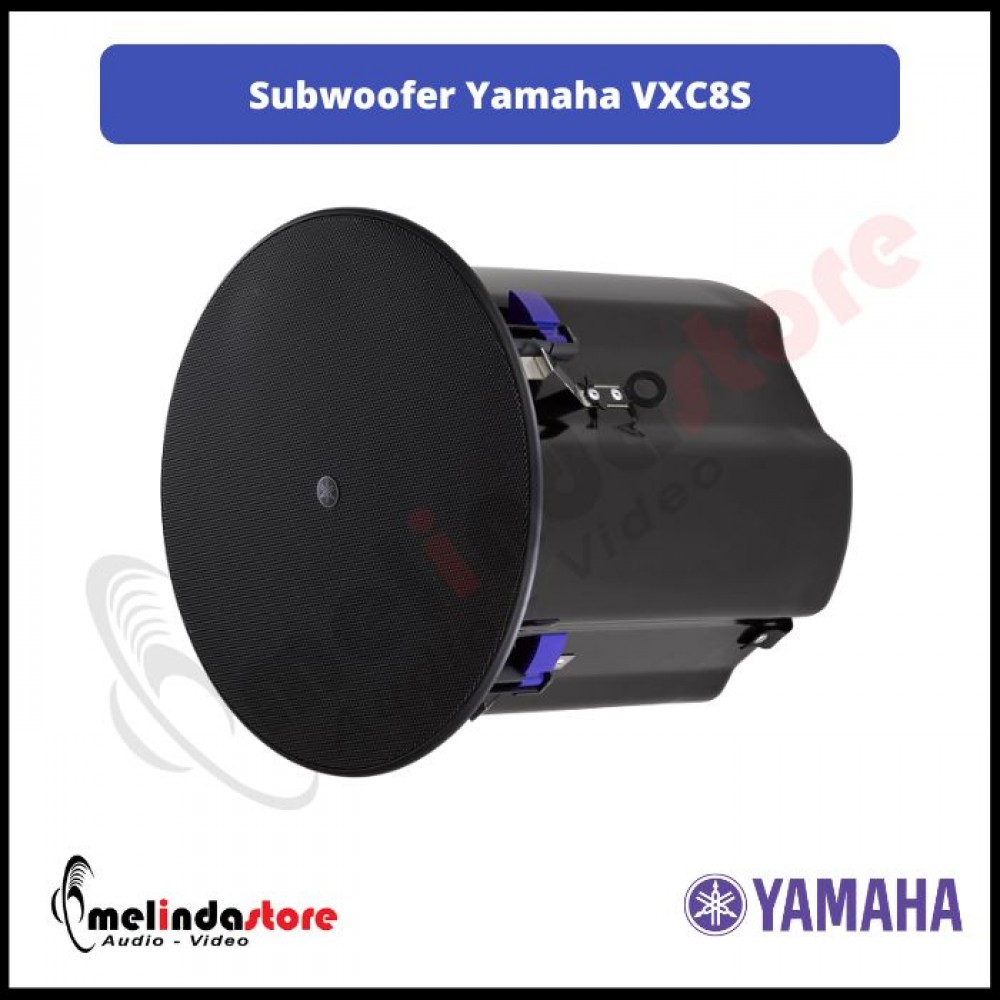

The Yamaha VXC8S is an 8-inch in-ceiling subwoofer designed for commercial sound installations, such as in retail stores, restaurants, and other professional buildings. It's part of Yamaha's VXC Series, and its sound and size are specifically matched to complement the VXS and VXC series full-range speakers.

Key Features and Specifications

• Speaker Type: Band-pass type subwoofer. This design helps to produce a smooth and distortion-free low-frequency extension by reducing unwanted vibrations and noise.

• Low-Frequency Driver: 8" cone.

• Frequency Range: 44 Hz to 200 Hz (-10dB) in a half-space configuration (2π).

• Power Rating:

  • Noise: 100 W

  • PGM (Program): 200 W

  • PEAK: 400 W

• Impedance: It supports both low-impedance (8 Ω) and high-impedance (70V/100V line) connections. The wattage can be easily changed after installation by switching the tap on the baffle.

  • 100V Taps: 60 W, 30 W, 15 W, 7.5 W

  • 70V Taps: 60 W, 30 W, 15 W, 7.5 W, 3.8 W

• SPL (Sound Pressure Level):

  • Sensitivity: 88 dB SPL (1W; 1m on axis, half-space 2π)

  • Peak: 114 dB SPL (calculated, 1m)

• Connectors: Euroblock (4-pin) with input (+/-) and loop-thru (+/-).

• Finish: Available in black (VXC8SB) and white (VXC8SW). The grille is paintable to match the decor of the installation space.

• Dimensions:

  • Diameter: 324 mm (12-13/16")

  • Depth: 314 mm (12-23/64")

• Weight: 8.7 kg (19.2 lbs)

• Cutout Size: Ø285 mm (Ø11-7/32")

• Ceiling Thickness: The required ceiling board thickness is 5 mm to 37 mm.

Installation and Design

The VXC8S features several smart design elements to make installation safer and faster:

• Built-in Carrying Band: This makes the speaker easier to transport and handle, especially when working on a stepladder.

• Anti-Drop Tab Mechanism: Securely holds the speaker in place temporarily during installation, allowing for safe and efficient work.

• Double-Threaded Screws: The speaker clamp screws are double-threaded, allowing them to be tightened twice as fast as conventional screws.

• Magnetic Grilles: The grilles are held in place by powerful magnets, making them easy to attach and remove.

• Accessories: An anti-drop wire and a cutout template are included. The AB-C8S O-ring and tile rail kit is sold separately and is required for secure installation.
