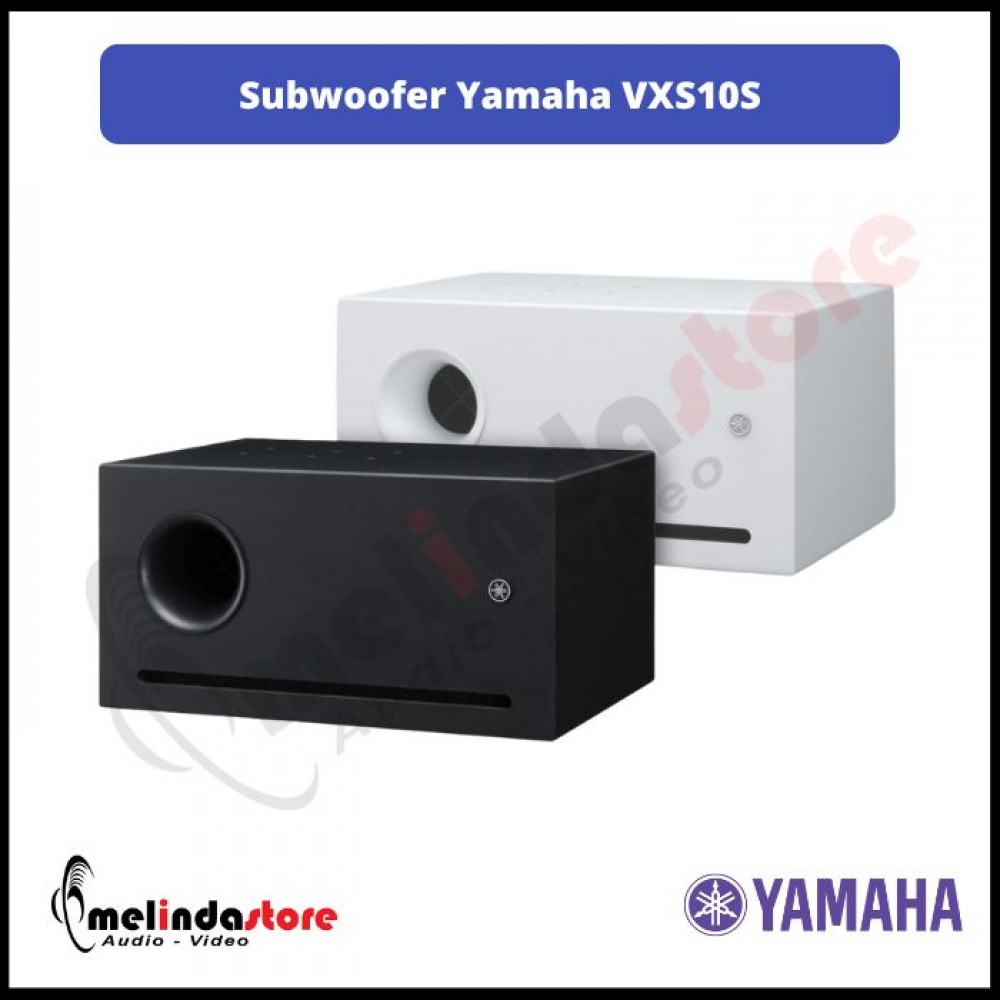

The Yamaha VXS10S is a passive, 10-inch commercial surface-mount subwoofer. It is designed to extend the low-frequency range of sound systems in commercial installations, such as restaurants, retail stores, and hotels. It is part of Yamaha's VXS Series and is made to pair well with other VXS and VXC series speakers.

Here are some key features and specifications:

Key Features:

• Bass-Reflex Design: The VXS10S utilizes a bass-reflex enclosure with a tuned port for enhanced low-frequency response and efficiency.

• Dual Voice Coil: It features a 10-inch woofer with dual 8-ohm voice coils. This allows it to support stereo sources and provides flexibility in system wiring.

• Wall/Ceiling Mountable: The subwoofer is designed for surface mounting and comes with dedicated wall-mount hardware. It can be installed in either a horizontal or vertical configuration.

• Connectors: It uses 4-pin Euroblock connectors for both input and satellite output. The satellite outputs allow for easy connection to a pair of full-range speakers.

• Protection Circuitry: It has a built-in power-limiting circuit to protect the network and transducers from overload.

Specifications:

• Frequency Range (-10 dB): 45 Hz - 250 Hz

• Components: 10" dual voice coil woofer

• Nominal Impedance: 8 Ω + 8 Ω

• Power Rating (per voice coil):

  • Noise: 100W

  • Program (PGM): 200W

  • Max (Peak): 400W

• Sensitivity (1W, 1m): 96 dB SPL

• Maximum SPL (calculated, 1m): 125 dB SPL

• Dimensions (W x H x D): 10.2" x 19.7" x 15.3" (260mm x 500mm x 389mm)

• Weight: 36.4 lbs (16.5 kg)

• Cabinet Material: MDF

• Available Colors: Black (VXS10S) and White (VXS10SW)

The VXS10S is often praised for its ability to provide solid, natural-sounding bass, and for its versatile installation options that allow it to be integrated discreetly into various spaces.

Harga tertera untuk : 1 Unit
