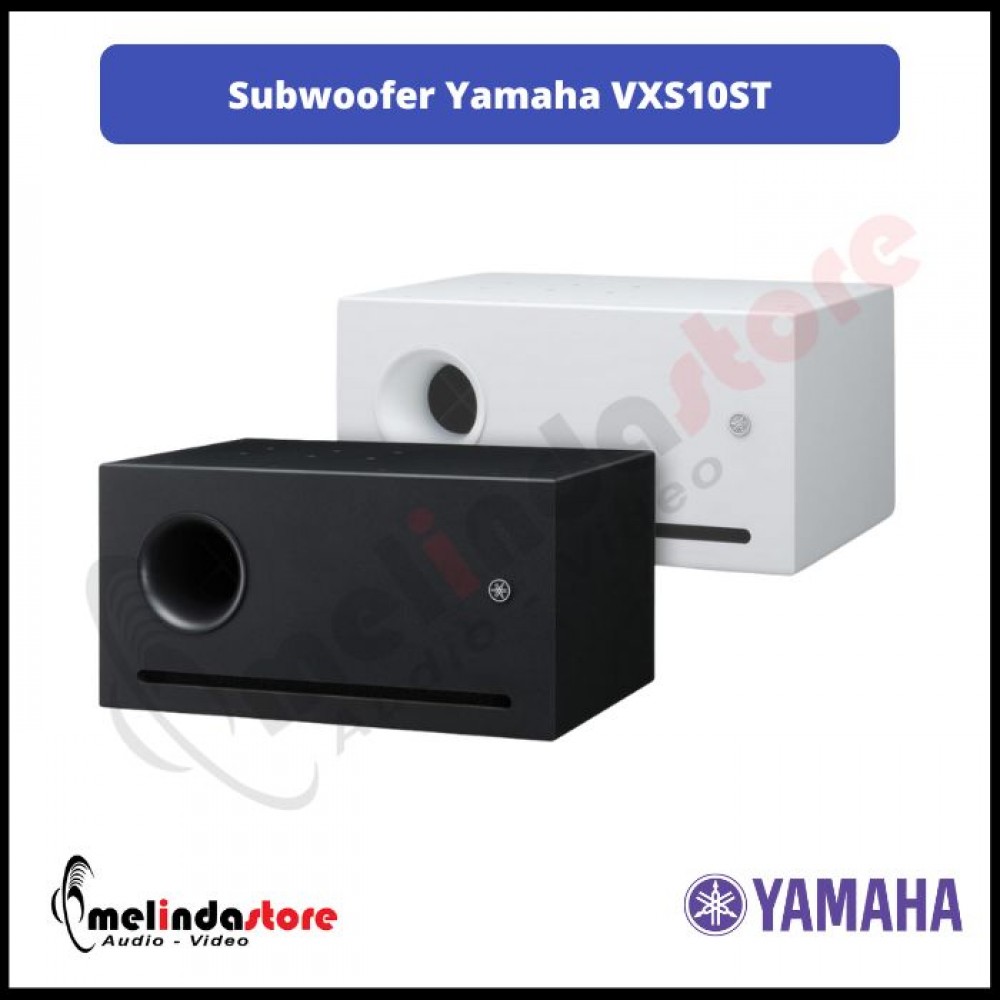

Subwoofer Yamaha VXS10ST

The Yamaha VXS10ST is a high-impedance, surface-mount subwoofer designed for commercial sound installations. It is part of the Yamaha VXS and VXC speaker series and is specifically engineered to complement those speakers, providing extended low-frequency response.

Here are some key features and specifications:

  • Speaker Type: Bass-reflex type subwoofer with a 10" dual voice coil driver.

  • High-Impedance System: The "ST" in the model name indicates that it's designed for high-impedance (70V/100V) systems, which are common in commercial installations. This allows for a single amplifier to power multiple speakers over long distances. The VXS10S is the low-impedance version.

  • Transformer Taps: It offers multiple power taps to adjust the output level to the system's needs.

    • 70V line: 200W, 100W, 50W, 25W

    • 100V line: 200W, 100W, 50W

  • Frequency Range: 45Hz - 250Hz (-10dB).

  • Sensitivity: 96dB SPL (1W, 1m).

  • Dual Voice Coil: The dual voice coil design allows the subwoofer to handle stereo sources, making it a versatile option for various audio setups.

  • Satellite Connectors: The VXS10ST features satellite connectors on the rear panel. This allows you to connect passive satellite speakers (such as VXS or VXC series speakers) directly to the subwoofer, reducing the need for additional amplifier channels. A built-in high-pass filter is applied to the satellites for a smooth crossover.

  • Installation: It is a surface-mount subwoofer, designed to be mounted on a wall. It comes with a dedicated wall-mount bracket for easy and secure installation.

  • Dimensions & Weight:

    • Dimensions (W x H x D): 260mm x 500mm x 389mm (10.2" x 19.7" x 15.3")

    • Weight: 19.5kg (43.0 lbs)

  • Aesthetics: The VXS10ST is available in both black and white models and can be painted to match the interior of a space.

The Yamaha VXS10ST is an ideal solution for adding powerful, distortion-free low-end to background music systems in commercial environments like cafes, restaurants, retail stores, and more.


Harga tertera untuk : 1 Unit
