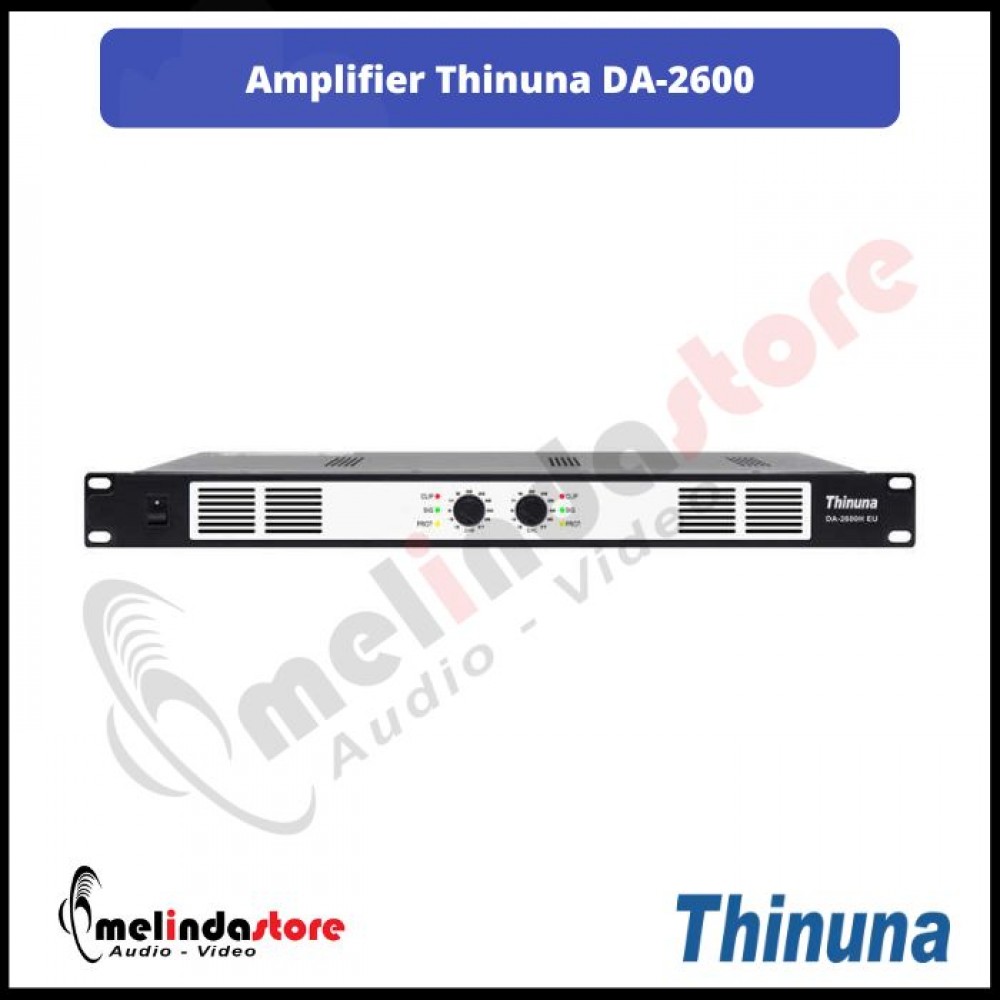

EU/EX-DA-2600H is a class-D installation amplifier. It is suitable for both 70/100V line installations (selectable through dip-switches). Each channel has its own volume control and LED indicators (signal, clip and protection). The input and output connections are made through euro terminals. Its 1U height 19 inch size is very appropriate for many types of installations, taking advantage of its multichannel design.

Specifications:

1. Output Power (100V) : 600W*2

2. Output Power (70V) : 600W*2

3. Input Sensitivity : 0.9-1.1V (0+/-1 dBV)

4. Input Impendance : 20k (Balanced) 10k (Unbalanced)

5. Freq Response : 100 Hz - 15 kHz

6. Voltage gain : 40 dB 7. THD+N : <0.1%

8. S/N Rate : >95dB

9. Crosstalk : >70dB

10. Damping Factor : >200

11. Power Output Circuity : Switching Power, Class-D

12. Power Supply : AC 110-240V, 50/60 Hz

13. Protection : Short Circuit, Open Circuit, Thermal, Ultrasonic RF

14. Connectors : Input & Output : Euroblock

15. Dimensions : 483 x 44 x 360 (mm) 16. Weight : 5.1kg
